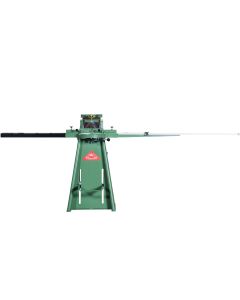

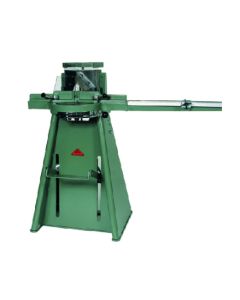

MORSO F MITRING MACHINE

Morso Model F mitring machine cuts double mitre at 45 degrees and single mitre up to 90 degrees.

Tenon, mortise joints, and a wide variety of angled cuts can also be made.

When using the Morso F, you will have no dust compared to a saw. Also, the waste of your moulding will be minimized as Morso F cuts double mitres very close, ( less than one mm waste of moulding ).

The mitre saw cannot do the mitres as close, and therefore the waste by using a saw, will always be minimum one centimetre.
Machinery Available to order (2-3 weeks)

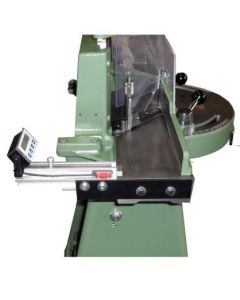

Morso digital measuring system

You can now have your new Morso mitring machine delivered with manually operated digital measuring system. This digital measuring system is also available as a subsequent installation on to all existing Morso machines in the market, no matter how old the machine is.

The manually operated digital measuring system consists of two units, which are also available separately. The manually operated digital measuring system for the in- and outside measurement, (DM 1500) is standard delivered in 1500 mm length. Upon request the system is also available up to as long as 6000 mm. When ordering DM 1500, the unit is delivered complete and ready to use. Aluminium fence, magnetic tape, stop ruler and obviously the digital display is all included. The aluminium fence is easily fitted as it uses the existing holes which are used for the existing measuring system.

See DATASHEET PDF

The manually operated digital measuring system for measuring the width of the rebate, uses the same principle, and is easily fitted, using the existing holes in the left side of the cast iron table. To read the width of the rebate, the moulding is placed against the fence, and then the reader is moved towards the rebate. When the unit touches the rebate the correct width can be seen on the display. The manually operated digital easuring unit for reading the width of the rebate is item code DR 100. When ordering this unit, it is delivered complete, ready to use, which means reading unit, display, fittings etc. is all included.

The digital system is easy and simple to use, it reduces the risk for mistakes when reading the numbers on your aluminium ruler, and especially the digital system will save you a lot of time when changing the lengths and widths. Not to mention that the precision is unique as the display can show up to 0.01 mm.
Machinery Available to order (2-3 weeks)

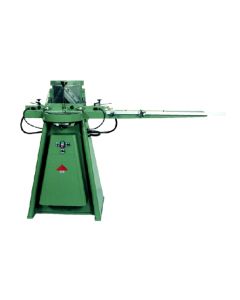

MORSO EH MITRING MACHINE

Morso Model EH mitring machine is a fully automatic electric/hydraulic mitring machine, with a noise level below 70db - the perfect machine to cut picture mouldings in production - wooden, plastic and MDF mouldings.

In principle Morso EH does the same work as the Morso F, but with the Morso EH you have your work done automatically by pushing two push buttons. The Morso EH is safe to operate as you must activate both push buttons at the same time to have the machine work, and therefore you cannot get your fingers underneath the knives. With the Morso EH you can do production all day long.
Machinery Available to order (2-3 weeks)

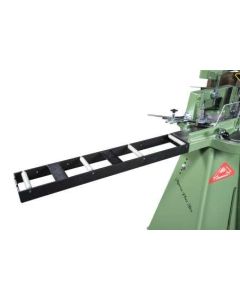

Morso InFeed Roller Tables

MORSØ Infeed Roller Tables left hand side of the machine for easier feeding of moulding.

The moulding slides extremely easy, saving the operator a lot of efforts when feeding the machine.

Also available is an extra roller infeed table with supporting leg.

Each section bolts on easily to your Morso.

See DATASHEET PDF
